Aluminium Profiles · Glass · Sheets · Folding Doors · Accessories — the full KATCO 2026 catalogue, stocked across our UAE branches.
58 pages — every profile drawing, weight, system code and specification in one PDF. Opens in your browser.
The catalogue documents our standard programme. KATCO can also extrude any custom die to your project requirements through our partner extruders, and we cut every profile to size before delivery. Send us a drawing or sample and we'll quote a custom run.
Jump straight to the section you need — every family below corresponds to a chapter in our 2026 catalogue.
5.5 / 10 / 10.5 / 12.5 cm series — standard and box-umbrella.
Jump to section →
4.2 and 4.5 series for residential and commercial openings.
Jump to section →
Arabian & Gulf families — sliding 10.5/12 cm and hinged 55/60 mm.
Jump to section →
50 mm series and Slim series for façade glazing.
Jump to section →
Hand rails, louvers, casting profiles, gate & kitchen series.
Jump to section →
100 mm & 120 mm F-Type and U-Type structural glass railings.
Jump to section →
Float, tempered, laminated, low-E glass and AA 1100-H14 sheets.
Jump to section →
TOPFLEX/LIGHTFLEX folding systems, handles, hinges and hardware.
Jump to section →

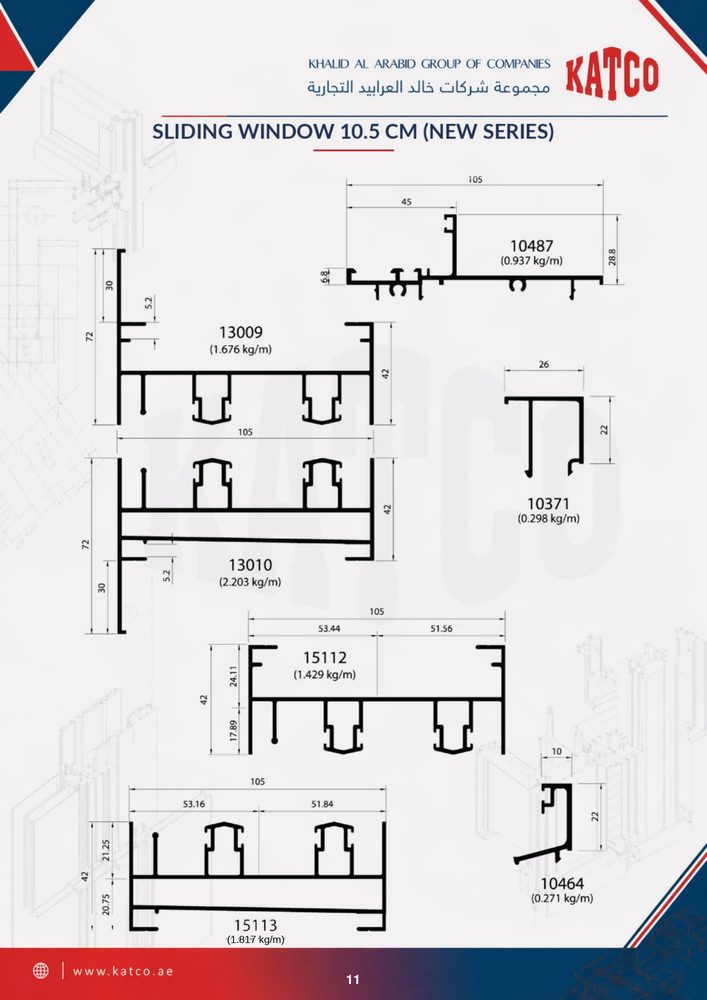

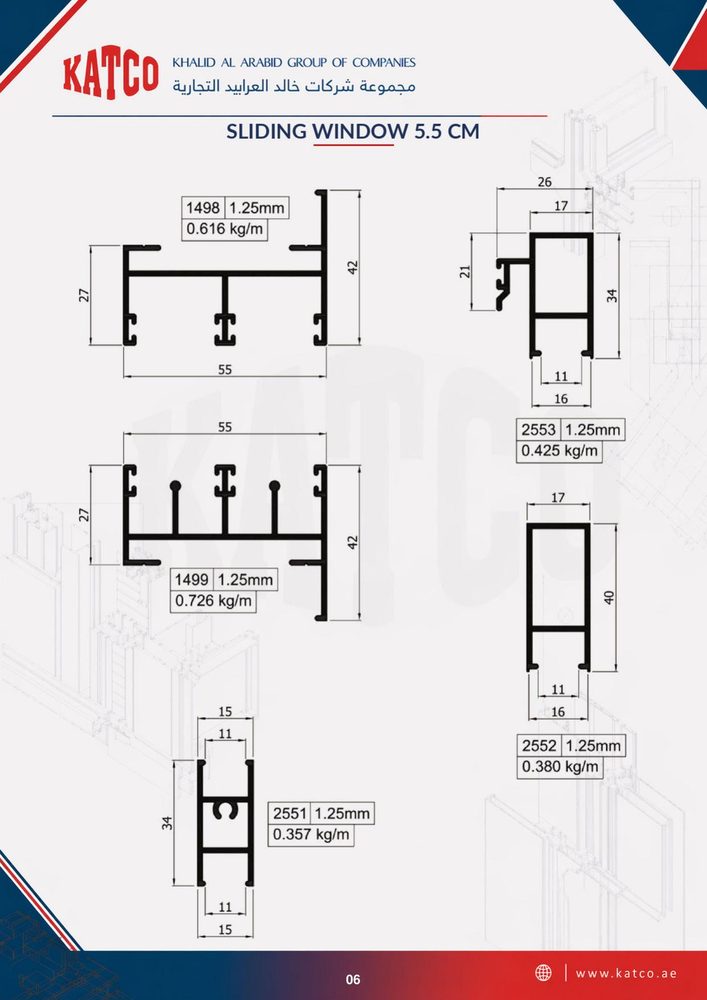

Five complete sliding-window families covering everything from light residential frames to heavy 12.5 cm new-series sashes. Each series ships with its own track, sash, interlock and beading profiles.
Material: 6063-T5/T6 aluminium · Finishes: mill, anodised, powder-coated · Standard length: 6 m, cut to size on request.

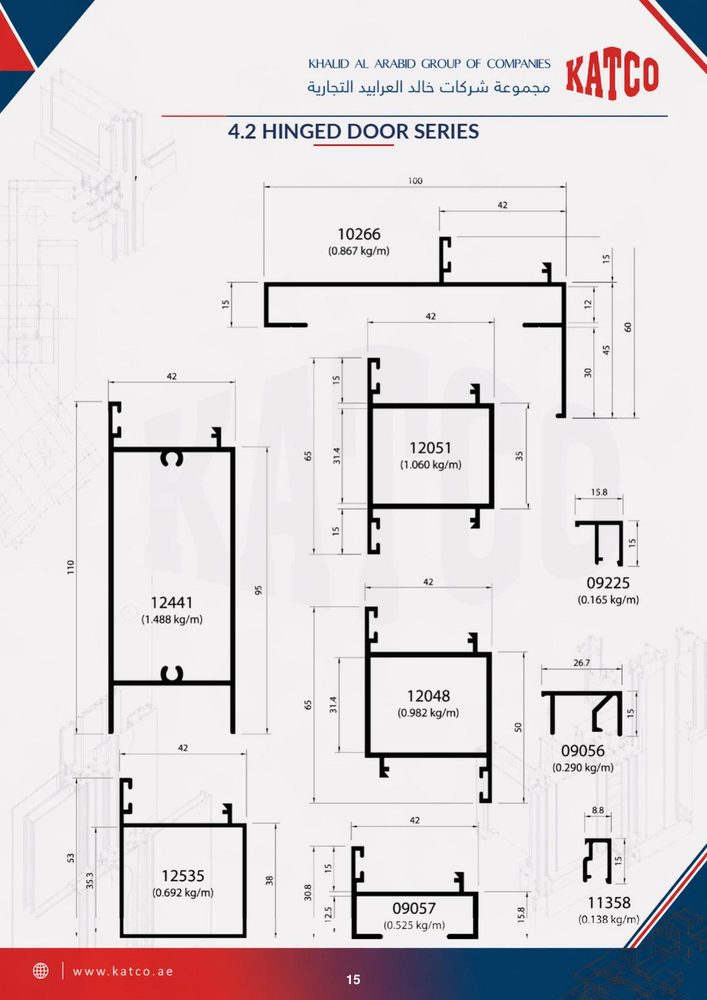

Two complete hinged-door programmes — the 4.2 series for residential and light commercial use, and the heavier 4.5 series for entrance doors and high-traffic openings.
Each series includes outer frames, sash sections, mullions, transoms and accessory profiles, all dimensioned for our standard hinge and lock hardware.
Polyamide-isolated profiles engineered for the Gulf climate — meaningful U-value reduction, condensation control and full compatibility with double and triple-glazing units.
Glass capacity: up to 30 mm IGU on the 12 cm series · Polyamide insulator: 24–34 mm depending on series.

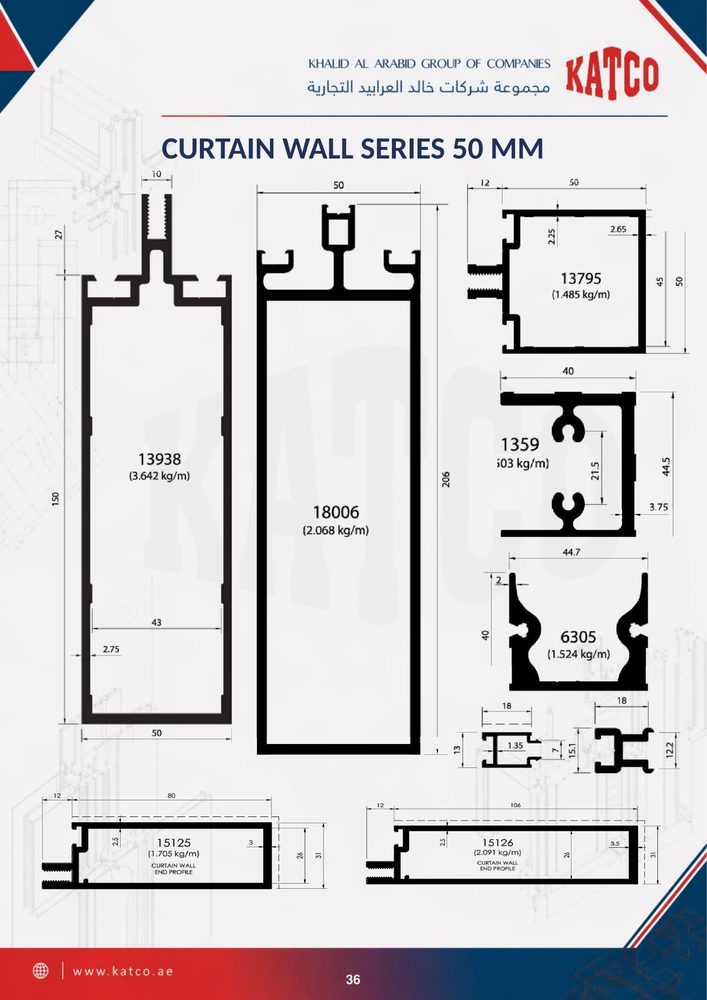

Stick-built curtain-wall systems for low and mid-rise façades. Two visual options — the 50 mm grid for stronger sight lines, and the Slim series for minimalist projects.
Mullions from 50 mm wide × 80–125 mm deep, transoms and pressure plates for vision and spandrel zones, with structural-glazing variants on request.

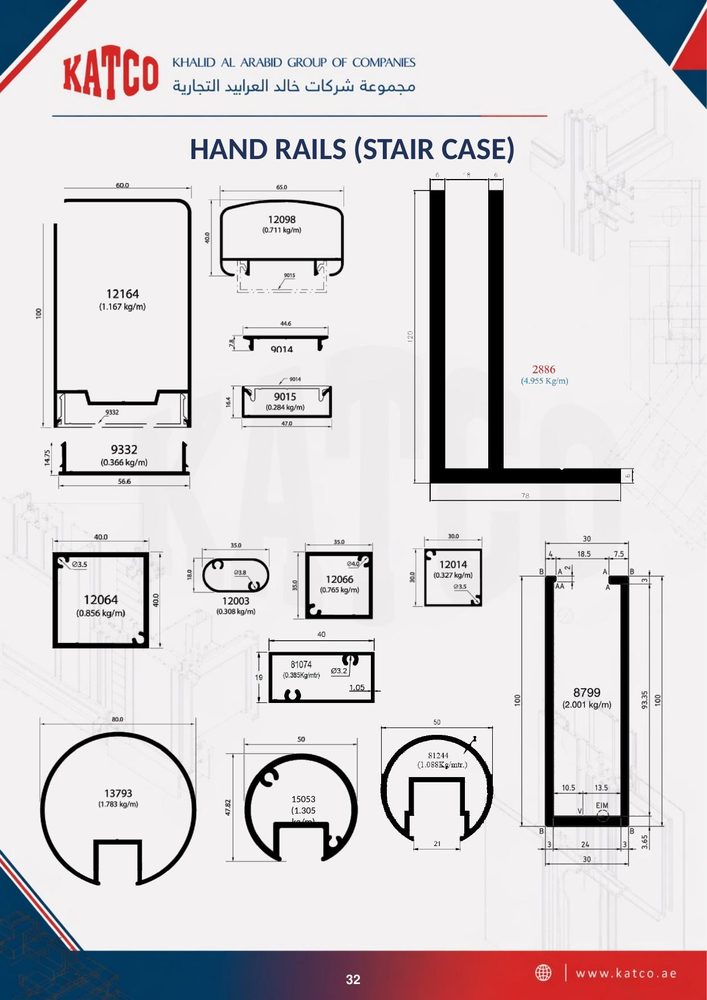

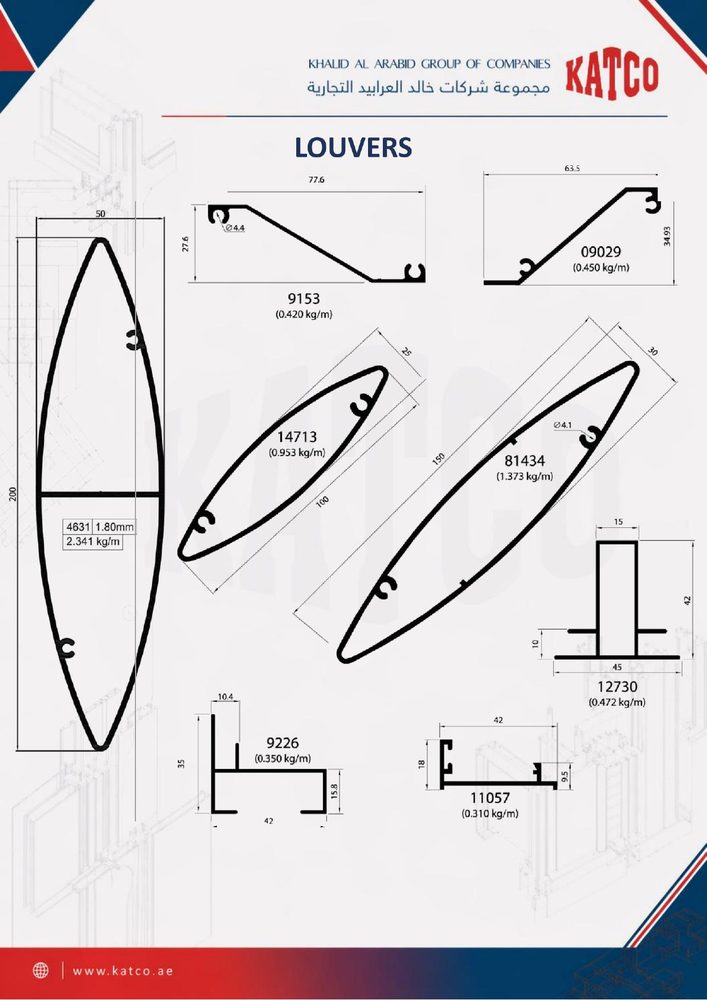

The supporting cast around windows and façades — handrails, sun-shading louvers, gates, kitchen frames and casting profiles for general fabrication.
All profiles available in mill finish, electrostatic powder-coat (full RAL chart) and anodised silver, bronze and black.

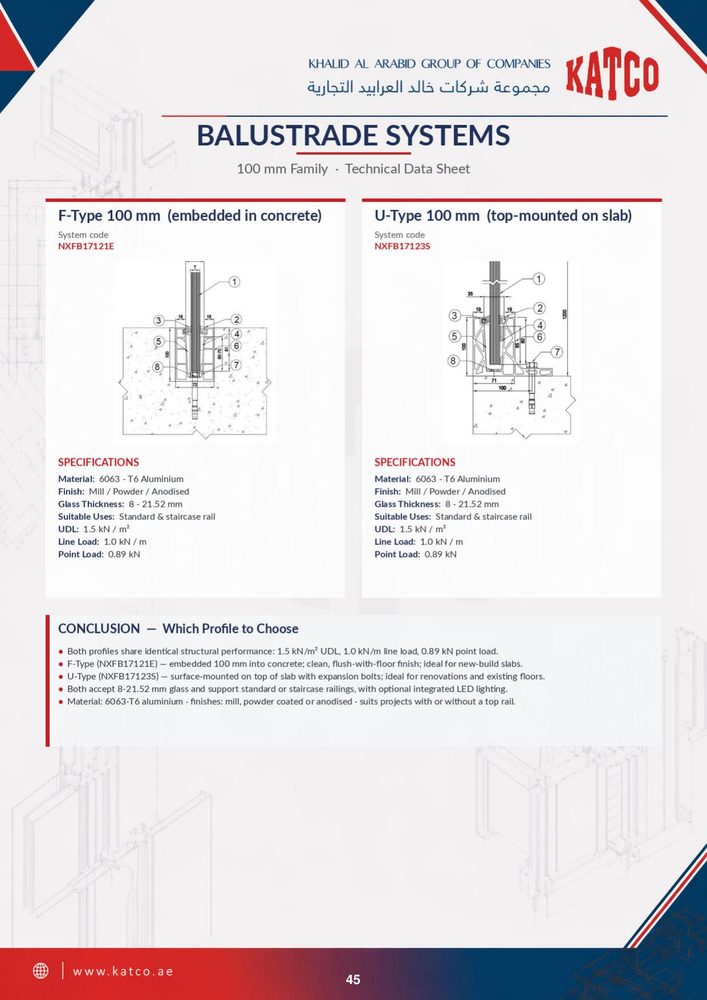

Structural-glass balustrades for staircases, balconies and roof edges. F-Type embeds into the slab for the cleanest architectural finish; U-Type top-mounts with expansion bolts — ideal for retrofits.
| System | Family | Glass thickness | UDL | Line load |
|---|---|---|---|---|
| F-Type 100 mm (NXFB17121E) | 100 mm | 8 – 21.52 mm | 1.5 kN/m² | 1.0 kN/m |
| U-Type 100 mm (NXFB17123S) | 100 mm | 8 – 21.52 mm | 1.5 kN/m² | 1.0 kN/m |
| F-Type 120 mm (NXFBA17103) | 120 mm | 13.52 – 21.52 mm | 1.5 kN/m² | 0.74 kN/m |
| U-Type 120 mm (NXFBA17101) | 120 mm | 12 – 21.52 mm | 1.5 kN/m² | 0.74 kN/m |
Material: 6063-T6 · Finish: mill / powder-coated / anodised · Point load: 0.89 kN · optional integrated LED lighting.

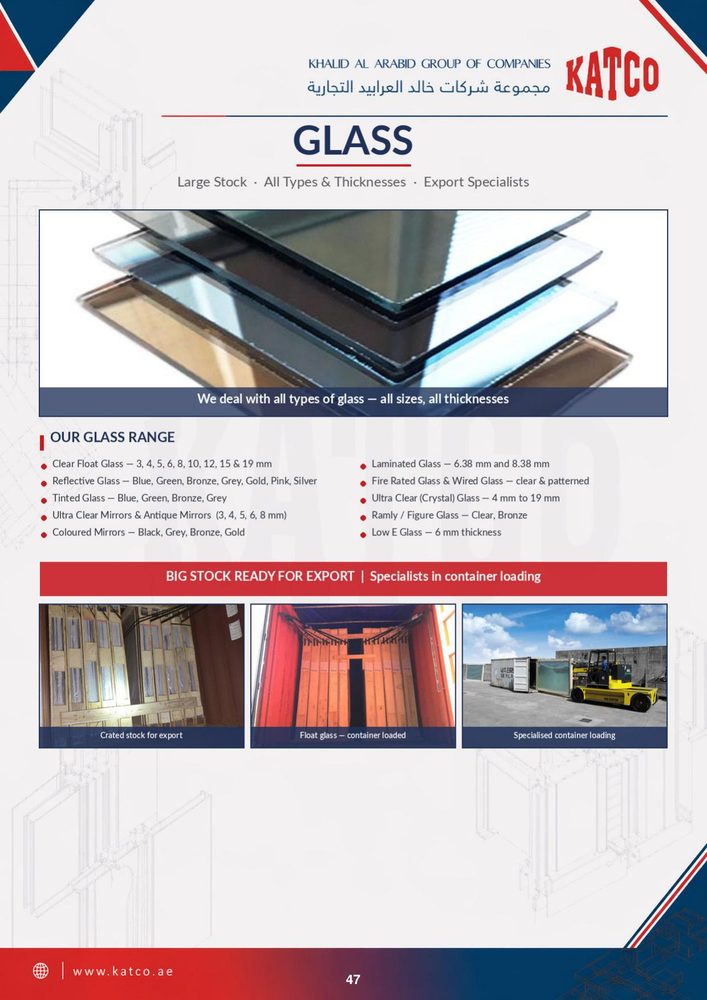

Large stock, all types and thicknesses — and we are container-loading specialists for export.

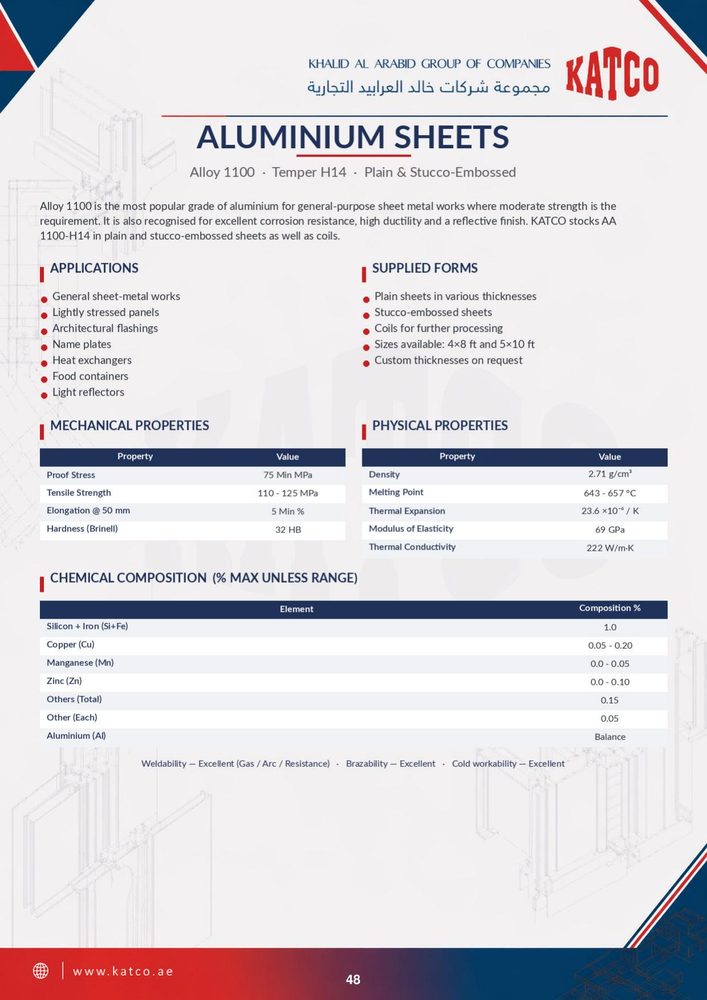

Alloy 1100, temper H14, plain & stucco-embossed. The most popular grade for general-purpose sheet metal work — excellent corrosion resistance, high ductility, reflective finish.
| Property | Value |
|---|---|
| Tensile Strength | 110 – 125 MPa |
| Proof Stress | 75 MPa min |
| Elongation @ 50 mm | 5 % min |
| Hardness (Brinell) | 32 HB |
| Density | 2.71 g/cm³ |
| Sheet sizes | 4×8 ft & 5×10 ft (custom on request) |
Supplied as plain sheets, stucco-embossed sheets, or coils for further processing. Excellent weldability, brazability and cold-workability.

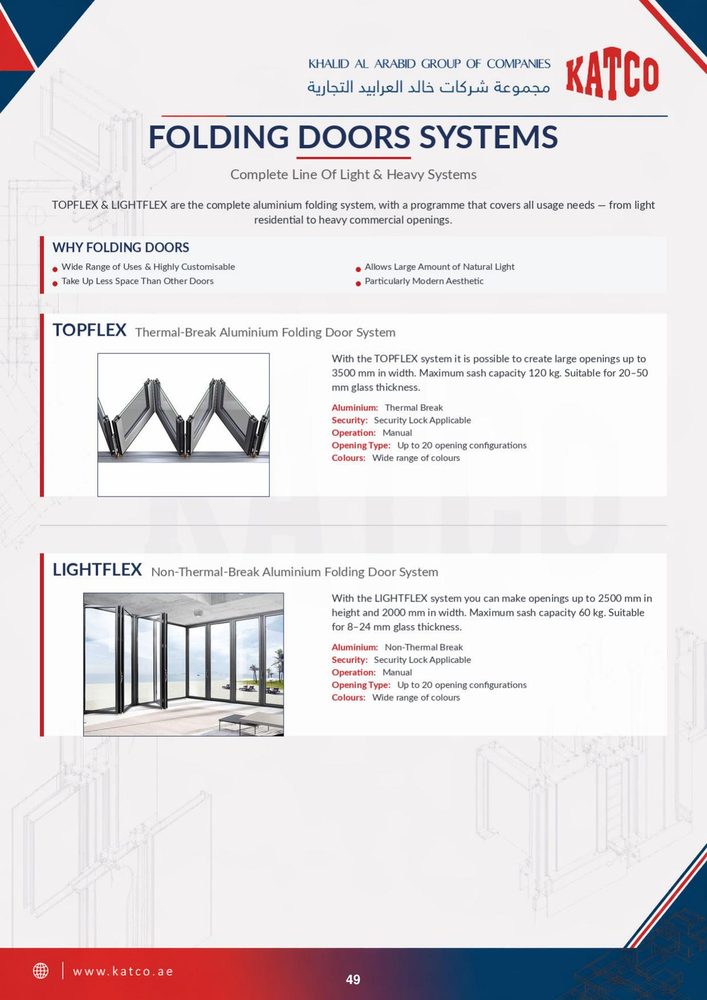

The TOPFLEX & LIGHTFLEX programme covers all usage needs — from light residential to heavy commercial openings.
| System | TOPFLEX | LIGHTFLEX |
|---|---|---|
| Aluminium | Thermal Break | Non-Thermal Break |
| Max opening width | 3500 mm | 2000 mm |
| Max opening height | — | 2500 mm |
| Max sash capacity | 120 kg | 60 kg |
| Glass thickness | 20 – 50 mm | 8 – 24 mm |
| Configurations | Up to 20 leaves | Up to 20 leaves |
Operation: manual · Security: security lock applicable · wide range of colours.

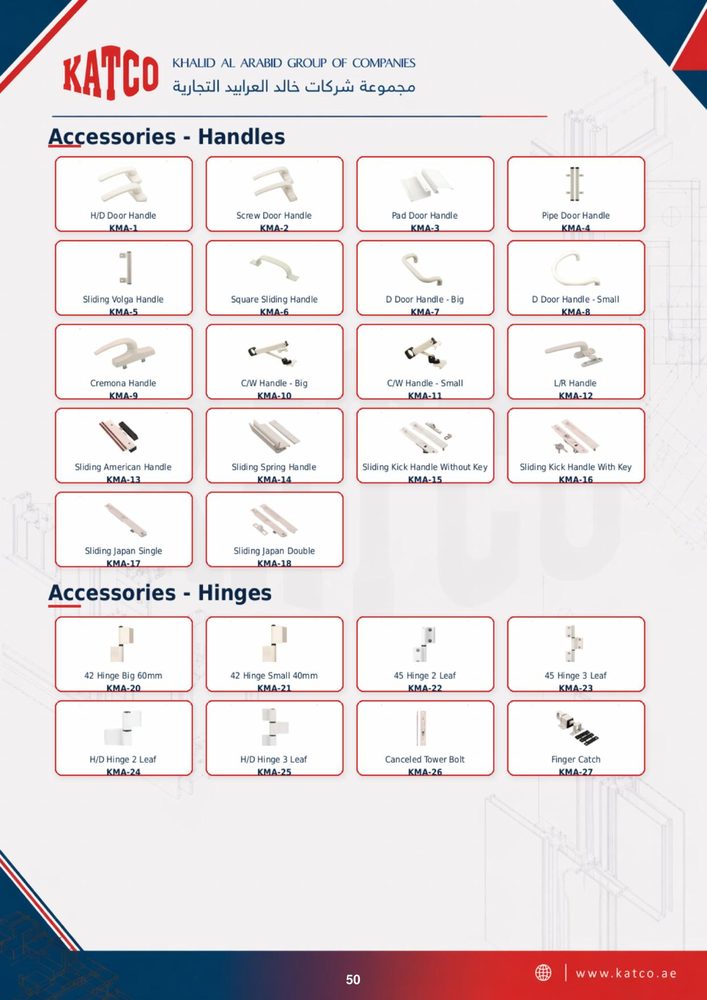

The full KMA accessories range — coded and stocked for every series in this catalogue. Pages 46–53 of the PDF list every part number with photographs.
Every KATCO profile is extruded from 6063 or 6061 aluminium in tempers T4, T5 or T6 — the standard architectural alloys for the GCC market.
| Property | 6063 T4 | 6063 T5 | 6063 T6 | 6061 T5 | 6061 T6 |
|---|---|---|---|---|---|
| Ult. Tensile Strength (N/mm²) | 152 | 150 | 185 | 190 | 280 |
| 0.2% Proof Stress (N/mm²) | 90 | 110 | 160 | 115 | 240 |
| Hardness (Brinell, BHN) | 55 | 55 | 75 | 60 | 90 |
| Ult. Shear Strength (N/mm²) | 105 | 155 | 155 | 205 | 205 |
| Elongation @ 50 mm (%) | 22 | 8 | 8 | 8 | 8 |
| Density (g/cm³) | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Modulus of Elasticity (N/mm²) | 67 000 | 67 000 | 67 000 | 69 000 | 69 000 |
| Melting range (°C) | 600 – 650 | 600 – 650 | 600 – 650 | 580 – 650 | 580 – 650 |
6063-T4: most widely used architectural temper — naturally aged. 6063-T5/T6: artificially aged for greater strength. 6061: structural alloy for higher loads.
We only carry materials from manufacturers that meet our standards for quality and technical support.
Send your material list and we'll respond within one working day.
